CUTTING-EDGE TECHNOLOGY — High Penetration Real Time Sampling GPR
MONOSTATIC ANTENNA — Better performance vs. conventional bistatic GPR
AIRBORNE & AIR-COUPLED — Easy to operate, even in non-walkable terrain
PERFORMANCE — 45 dB increased S/N-ratio versus conventional GPR

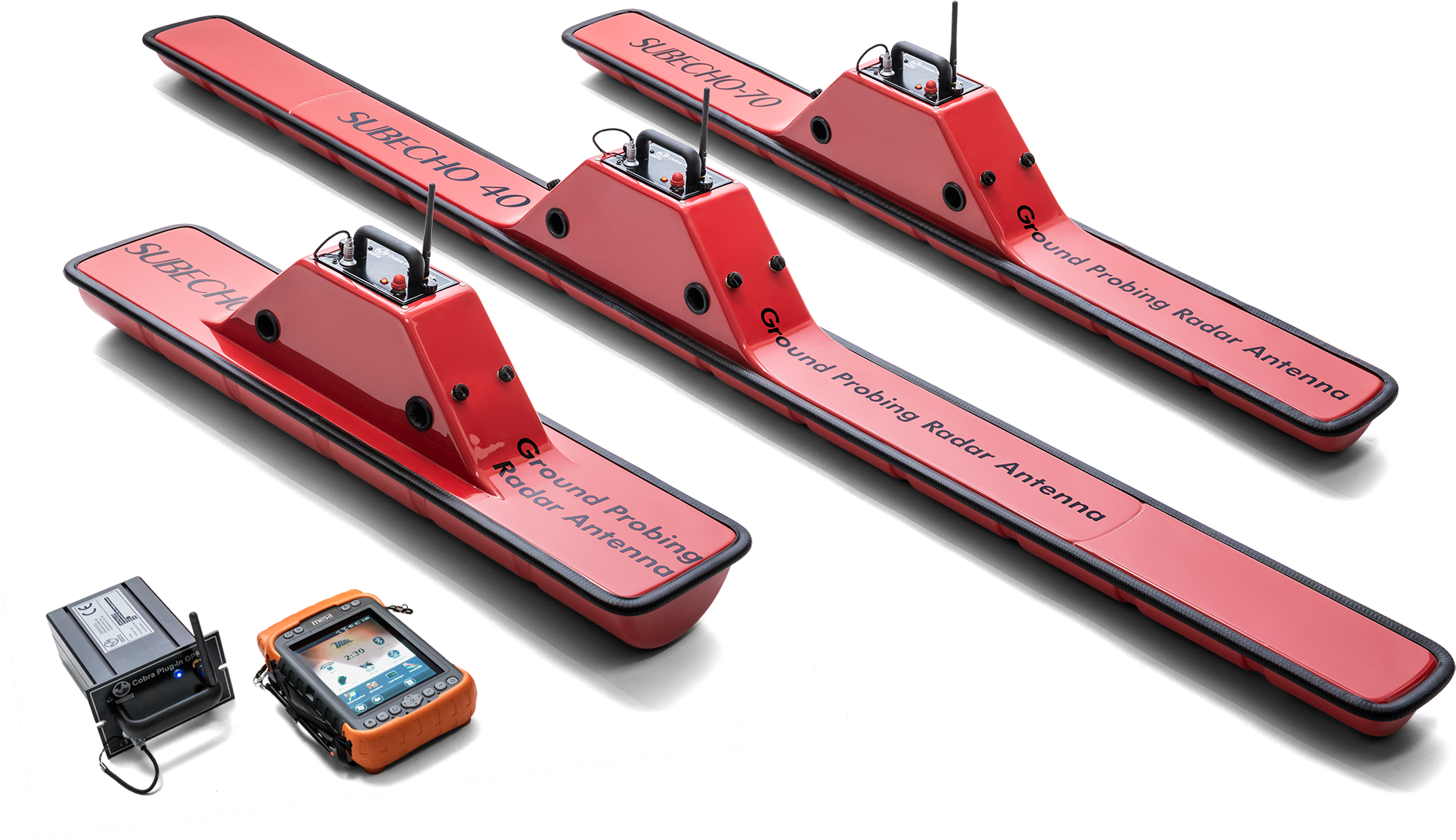

GPR — Fits all our popular low frequency SE-antennas
HANDHELD RUGGED CONTROL UNIT — Included, with DGPS
WIRELESS BLUETOOTH OPERATION — No cables, less ringing
LOW POWER CONSUMPTION — 16 hours between charges
COMPACT AND LIGHT — Complete system below 2.205 lb
UNPARALLELED PENETRATION — Up to 393.701 ft depths
LOW TRANSMITTER OUTPUT — Less ringing in data
POST PROCESSING SOFTWARE — Included
The COBRA PLUG-IN GPR uses Real Time Sampling of the radar signal. Today major manufacturers use conventional interleaved sequential sampling, giving only a down converted replica of the real signal.
The Real Time Sampling allows for 32,000 stacks/second resulting in an amazing 45 dB increased signal-to-noise ratio.
Wireless Bluetooth connection between GPR and control unit replaces interfering coax-cables and fragile fiber-optic links. An Ultra Rugged Mesa PDA with embedded software is used for data collection.
Data is stored in standard SEGY geophysical format. The complete GPR-unit plugs into a single SUBECHO Antenna, any selectable model. No need for bistatic configuration.
